Specifications

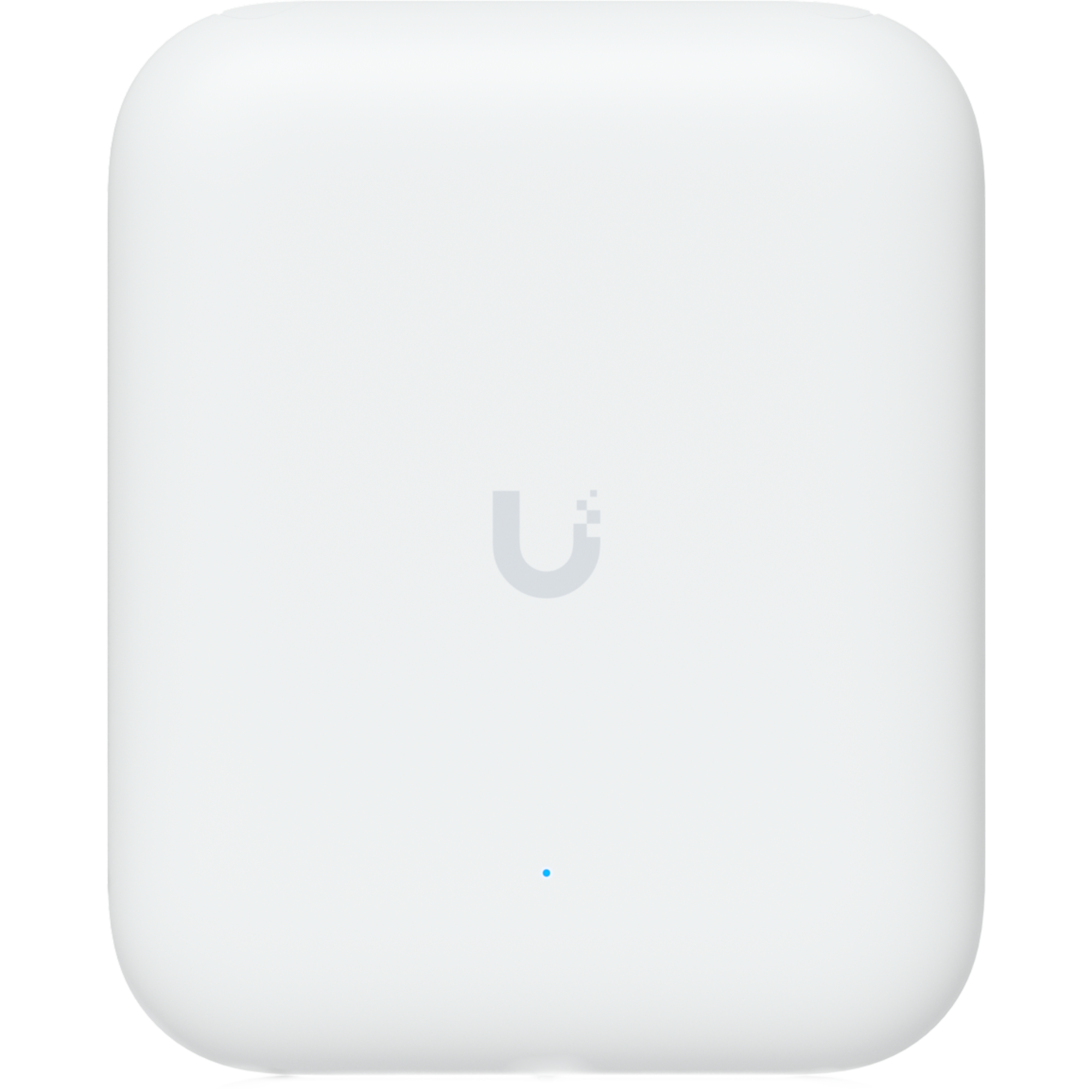

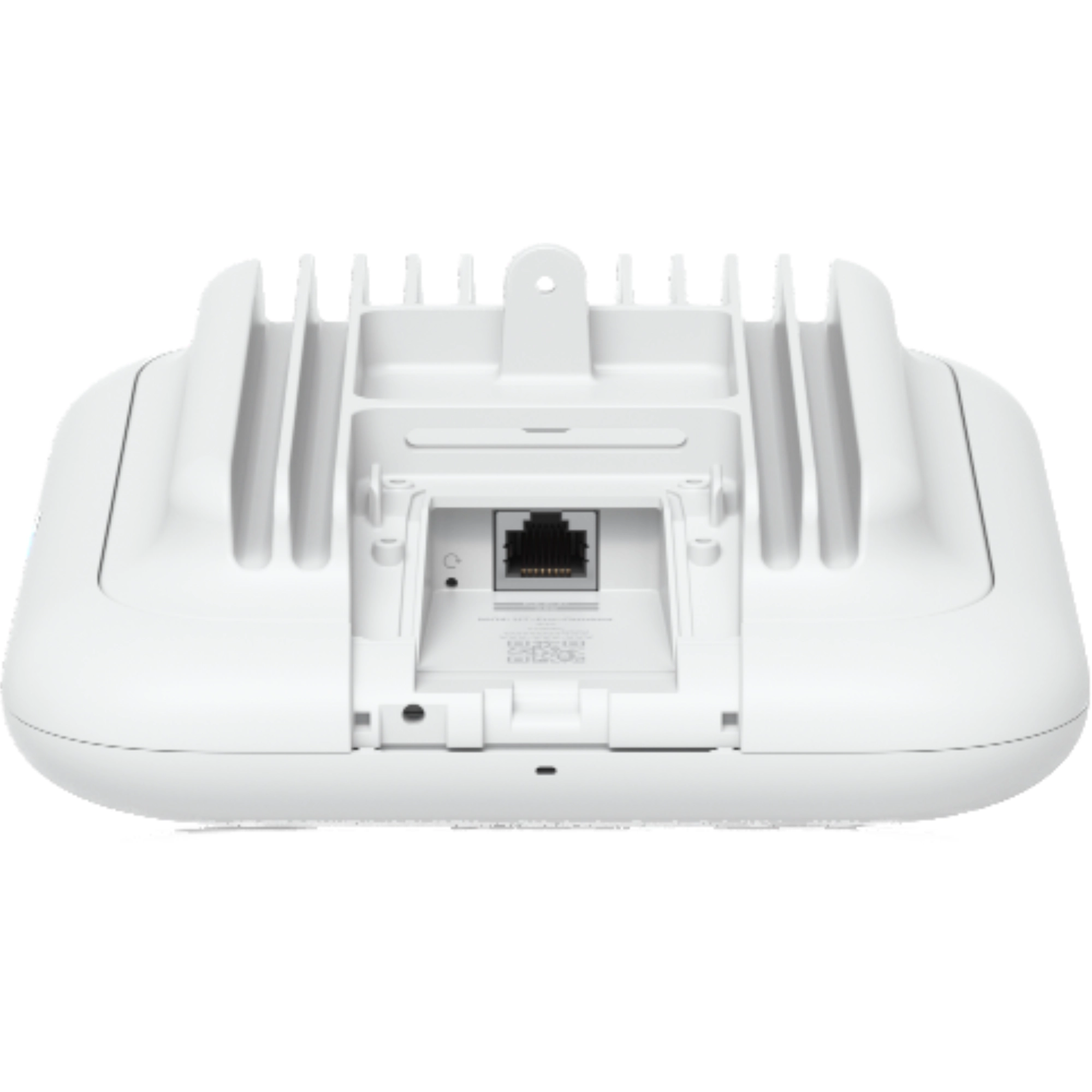

The Unifi U7 Pro Outdoor is a tri-band WiFi 7 access point with 6 spatial streams and an uplink of 2.5 GbE. It is built for outdoor use with an IPX6 weather rating. It is powered by PoE+ and features a directional internal antenna as well as two external omni antennas with RP-SMA connectors, allowing for versatile deployment.

The WiFi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser.

Details

• Networking Interface: 2.5 GbE Ethernet Port
• WiFi Standard: WiFi 7
• Power Method: PoE+
• Maximum Power Consumption: 21W
• Maximum TX Power 2.4 GHz: 23dBm
• Maximum TX Power 5 GHz: 26dBm
• Maximum TX Power 6 GHz: 26dBm
• Mounting: Wall or Pole
• Operating Temperature: -30 to 60°C
• Operating Humidity: 5 to 95% Non-condensing

Documentation & downloads

• Datasheet
• Installation guide
